The vent functions as a safety measure and allows the diaphragm within the regulator to breathe. Additionally, if the diaphragm ever ruptures the vent facilitates a leak path to the atmosphere. If the vent becomes restricted, the regulator will not correctly regulate the pressure to the meter..
Furthermore, what is a vent limiter on a gas regulator?
Vent Limiting Means A vent limiting orifice or device when used with Maxitrol regulators does not release or relieve gas into the environment during normal operation. Vent limiters are designed for use indoors and in spaces where limiting the amount of gas escapement due to diaphragm failure is critical.
Furthermore, how does a gas pressure regulator work? A pressure regulator works through the same principles of any natural gas regulator. When pressurized natural gas enters the regulator, it will push up against the diaphragm, bringing tension to the spring. The diaphragm will move upward as far as the tension of the spring will allow it to go.
Beside this, what is the vent for on a propane regulator?
The regulator vent allows the regulator to "breathe" during normal operation and functions as a pressure relief opening in an overpressure situation. It should remain free of dirt and debris for the purpose of safety.
Can a gas regulator be installed vertically?
If a modification of the angle is required on the gas intake manifold for installation purposes, regulator position either horizontal or vertical is acceptable. As long as regulator is not upside down and the flow arrow points to wards the cook top.
Related Question Answers
Do gas regulators need to be vented?

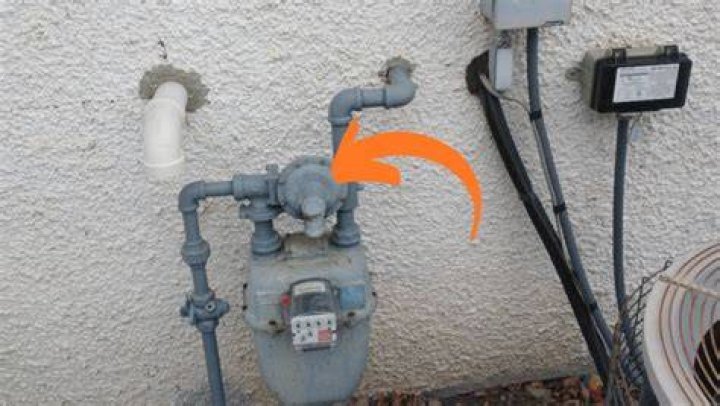

The natural gas regulator is a critical component of the meter set, and needs to be vented and should comply with local and federal venting requirements (may vary from county to county). The vent functions as a safety measure and allows the diaphragm within the regulator to breathe.How often should gas regulators be replaced?
Gas regulators should be replaced every 10 years, visual signs of age are usually noticeable.How do you test a gas regulator?
Connect the hose on the positive line on the manometer to the regulator inlet located beneath the removed cap. Turn the gas shutoff valve counterclockwise to turn the gas on, and check the display on the manometer.Is it normal to smell gas by meter?
Answer: No, you should not smell gas at your gas meter. The only reason you are smelling gas by your gas meter is a leak at the regulator or at leak at one of the pipe connections, both of which are bad news. A gas leak smells like rotten eggs.Is it normal to smell propane at the regulator?
The color of the flame changes and can cause sooting. 3) You smell gas coming from the regulator. It could be caused by a hole in the diaphragm. You would smell the gas coming from the vent of the regulator.How do I know if my propane regulator is bad?
Signs of possible problems with a propane gas regulator or appliance include lazy yellow or orange flames; a popping noise when turning a gas burner off or on; flames floating above burner ports; roaring noises from burners; flames at the burner air intake; flames spilling out of the burner; and heavy deposits of sootWhere is the vent on a propane regulator?
The regulator safety relief valve (vent opening) should be located not less than 5 feet from any potential source of ignition, opening into any sealed combustion chamber appliance, and be not less than 5 feet from any mechanical ventilation air intake.How do you adjust a gas regulator?
Pull off the regulator cap. There is a spring and an adjusting screw underneath. Usually turning the screw clockwise increases outlet pressure but the direction of adjustment is marked on the regulator. Turn the screw a little to make a small pressure increase adjustment as seen on the pressure gauge.How do you fix a leaking propane regulator?
Dip the regulator into a solution of soap and water and reattach the regulator and hose to the tank. Ensure the burners on the grill are in the "Off" position and turn on the valve on the tank. If there is a leak in the regulator or hose, the soap bubbles will indicate its location.How long do propane regulators last?
Your RV propane regulator should last a while, but it won't last forever. It's a good idea to replace them every ten to 15 years. Even if you're not experiencing any trouble with your RV's propane system, the inside parts wear down and wear out after a while.How do you clean a propane regulator?
This can be done using a simple mixture of water and liquid detergent. Apply a small amount of this solution to the propane regulator using a soft-bristled brush or a spray bottle. Be sure the soapy water covers the entire regulator, including where the hoses connect. Slowly turn on the gas.What is a two stage propane regulator?
Second stage regulators work with propane at a pressure supplied by the first stage regulator (inlet pressure) and further decrease that to a pressure that can be used by appliances (outlet pressure). Most outlet pressures of second stage regulators are measured in inches water column, such as 11" water column.Why does my propane regulator leak?
If you can't find any obvious problems with the vent hole, you should troubleshoot your propane regulator for any gas leaks. Then, with the burners in the “off” position, turn the propane valve on. If bubbles appear in the soapy covering in any part of the grill, a faulty part is causing the gas leakage.Do gas regulators leak?
Regulators can malfunction if they're not installed correctly. Connections to the regulator must be wrench-tight. However, if the connections are tightened too much, the regulator can crack and start to leak. Regulators can also malfunction if the gas pressure is too high and exceeds the regulator rating.What happens when a gas regulator fails?
In general, regulator failure would result in either too much or too little pressure downstream. If the regulator fails and allows too much gas to flow (a "failed-open" condition for the regulator), downstream pressure will increase. The relief valve will remain closed until pressure reaches its set point.Are all gas regulators the same?
Although the purpose of LPG regulators is the same, different applications may require different types of regulators. The gas demand of the appliances determines what type of regulator is installed. Commercial sized regulators are completely different and frequently comprised of two separate units.What is a 2 stage regulator?
Two-stage regulators are two regulators built into a single regulator body. The first regulator (first stage) is preset at a non-adjustable pressure to reduce the incoming pressure to a lower pressure, referred to as the intermediate pressure.How do you clean a gas regulator?
Mix 1/4 cup of dish soap and water in a bowl. The solution should contain an equal part of both. Reconnect the hose and brush all connections with this solution. This would include the connection between the regulator and tank, the regulator and hose, and the hose and grill.What is the normal gas pressure for a house?
The natural gas pressure of the gas line leading to the home ranges from approximately 1/4 psi to 60 psi, depending on the number of homes or businesses served by the line. This compares to pressures of up to 1,500 psi for large-volume pipelines used to move the gas from the well fields to the local utilities.
