What is kV kVA KVAR?
Andrew Ramirez updates

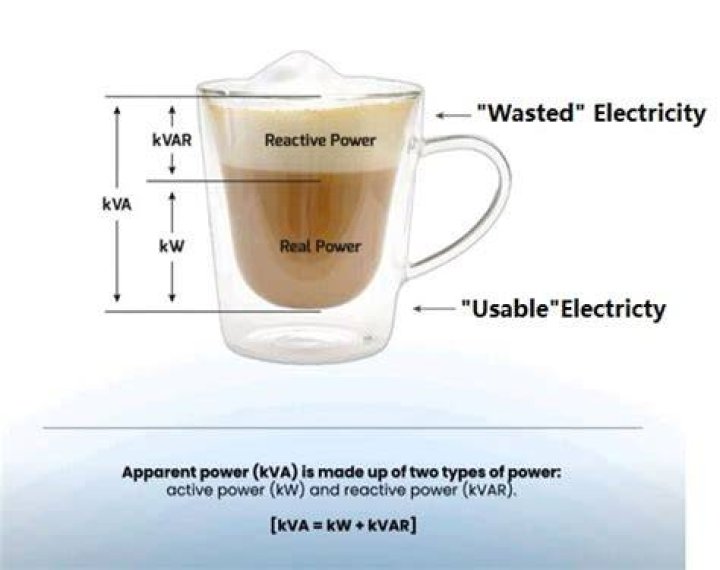

KVAR. KVAR is called as Kilo Volt Amps Reactive or 1000Volt Amps Reactive. It is the amount of “imaginary” power in a system. This happens when the voltage and current wave forms are no longer in phase with each other because of inductancecapacitance in an AC system. This one is a tiny less compare to the others.
.
Hereof, what is KVA and KVAR?
If you want to be particular about the difference between KVA and KVAR, kVA stands for real or actual power while kVAR stands for reactive or inductive power.
Secondly, what is the meaning of KVAR? KVAR = Kilo Volt Ampere Reactive. It's a unit of reactive power. Actual Power consumed by loads is called Kilo Watt Power. All the Power given to the load is not utilized as useful power, some power is being wasted. The power which is not consumed is called Reactive power i.e KVAR.
Also to know, how do you convert KVAR to KVA?
kva kvar kw calculation KVA = 1200/0.8 = 1500 KVA, In other words, the 1200 kW, with pf 0.8, needs to have available 1500 KVA.
How do you calculate kW KVA KVAR?
KVA (Kilo Volt Ampere) for electrical power that is not too large it is usually enough to use the VA power unit (Volt Ampere).
- 1 KVA = 1000 VA.
- 1 KW = 1000 Watt.
- 1 KVAr = 1000 VAr.
- 1 KWH = 1000 Watt in an hour.
- 1 KWH how many KW (1 KWH = .KW)
Related Question Answers
Why KVAR is important?
a.This increase in required reactive power (KVAR) causes an increase in required apparent power (KVA), which is what the utility is supplying. So, a facility's low power factor causes the utility to have to increase its generation and transmission capacity in order to handle this extra demand.What is KVA rating?
kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. In many circumstances the power required by the load is equivalent to the rating of the transformer expressed in either VA or kVA. For example a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.How do I calculate kVA?
Use the formula: P(KVA) = (V^2/R)/1000 where R is resistance in ohms. For example, if V is 120 volts and R is 50 ohms, P(KVA) = V^2/R/1000 = (14400/50)/1000 = 288/1000 = 0.288 KVA. Calculate power rating in KVA when you know power in watts and the power factor.How do you write kVAr?
Even if the unit of reactive energy is similar to VA, the standardized symbol is “var” (with small letters). On the other hand, the symbol for kilo (103) is k, and the symbol for mega (106) is M. Then, the multiple of “var” are kvar (kilovar) and Mvar (megavar).Why are transformers rated in kVA?
The transformer does not alter the power factor of its output power. Transformers are rated in kVA because the losses occurring in the transformers are independent of power factor. KVA is the unit of apparent power.How do you convert kVA to Watts?
The ratio between the VA (i.e. rms volts time rms amps) and Watts is called the power factor PF.- VA·PF = Watts (for any load, including inductive loads)
- KVA·PF = KW (any load, including inductive loads)
- KVA·PF = W/1000 (any load, including inductive loads)
- VA·PF = 1000·KW (Kilowatts to VA)
What is a good power factor?
Good power factor is generally between 1.0 and 0.95. Poor power factor is anything from 0.95 and 0.85. Bad power factor is anything below 0.85. Commercial office buildings are usually somewhere between 0.98 and 0.92, industrial buildings could be as low as 0.7.What is difference kW and kVA?
kW is the amount of 'actual power' an electrical system has. This shows you how much power is being converted into useful, working output. kVA, on the other hand is the measure of 'apparent' power. If kW is how much power you can work with, kVA tells you how much is being used in the system overall.How many kVA is 5kw?
kW to kVA Conversion Chart
| kW | kVA |
|---|---|
| 5 kW | 6.3 kVA |
| 7.5 kW | 9.4 kVA |
| 10 kW | 12.5 kVA |
| 15 kW | 18.7 kVA |
What is power factor in 3 phase?
Power Factor for a Three-Phase MotorThe total power required by an inductive device like a motor or similar consists of. Active (true or real) power (measured in kilowatts, kW) Reactive power - the nonworking power caused by the magnetizing current, required to operate the device (measured in kilovars, kVAR)How do I convert kVA to amps?
To calculate amps from KVA, you need to know the power efficiency and the voltage of the circuit.- Multiply the number of KVA by 1,000 to convert to VA.
- Multiply the VA by the power factor expressed as a decimal.
- Divide the result by the number of volts of current to calculate the number of amps.
What power factor means?
In electrical engineering, the power factor of an AC electrical power system is defined as the ratio of the real power absorbed by the load to the apparent power flowing in the circuit, and is a dimensionless number in the closed interval of −1 to 1. Apparent power is the product of RMS current and voltage.What is the relation between kVA kW and kVAr?
kW = kVA Cos (angle between the voltage and current waves or phasors). kVAr = kVA Sin (angle between the voltage and current waves or phasors). where Cos (angle between the voltage and current waves or phasors) is known as power factor and it depends on load type.What is the formula for power factor?
This therefore gives us: Power Factor = Real Power/Apparent Power, or p.f. = W/VA. Then the cosine of the resulting angle between the current and voltage is the power factor. Generally power factor is expressed as a percentage, for example 95%, but can also be expressed as a decimal value, for example 0.95.How many amps are in a kW?
AC single phase amps to kilowatts calculation formulaAnswer: the power P is equal to power factor of 0.8 times current of 3 amps times voltage of 110 volts, divided by 1000.How many kVA does it take to run a house?
9.2 kVA
