What is IP address explain subnetting with example?
James Craig .
Besides, what is IP address with example?
An IP address is written in "dotted decimal" notation, which is 4 sets of numbers separated by period each set representing 8-bit number ranging from (0-255). An example of IPv4 address is 216.3. 128.12, which is the IP address previously assigned to iplocation.net.
Beside above, what is an IP address and how does it work? An Internet Protocol address (IP address) is a numerical label assigned to each device connected to a computer network that uses the Internet Protocol for communication. An IP address serves two main functions: host or network interface identification and location addressing.
Also Know, what is the subnet of an IP address?
The routing prefix of an address is identified by the subnet mask, written in the same form used for IP addresses. For example, the subnet mask for a routing prefix that is composed of the most-significant 24 bits of an IPv4 address is written as 255.255. 255.0.
How does subnetting work?
Subnetting works by applying the concept of extended network addresses to individual computer (and another network device) addresses. But because this is a Class C network, the default subnet mask of 255.255. 255.0 allows all computers on the network to be peers (to send messages directly to each other) by default.
Related Question Answers
What exactly is IP address?
Android users can click on the network name in their WiFi settings, and it will show the IP address. Your public IP address is the main IP address to which your home or business network is connected. This IP address connects you to the world, and it's unique for all users.What is a 192.168 IP address?
Using 192.168.192.168. 0.0 is the beginning of the private IP address range that includes all IP addresses through 192.168. 255.255. This IP address is usually not used on a network, and a phone or computer wouldn't be assigned this address. One common IP address assigned to home routers is 192.168.What is my private IP?
To determine your computer's private IP address, if you're running Windows, click Start, then Run, then type cmd and press Enter. That should give you a command prompt. Type the command ipconfig and press Enter -- this will show you your private IP address.How do you find IP address?
Tap on the gear icon to the right of the wireless network you're connected to, and then tap on Advanced toward the bottom of the next screen. Scroll down a bit, and you'll see your device's IPv4 address.How do I identify my IP address?
How To Find Your Local IP Address In Windows 7 or Vista- Click Start, in the search Type in cmd. Next, Click on the program cmd.
- The command prompt should open; now in the open line, you'll need to type in ipconfig and press Enter. You'll see your IP address listed right above the subnet mask.
- Step 3 (optional)
What is default gateway IP?
In the networking world, a default gateway is an IP address that traffic gets sent to when it's bound for a destination outside the current network. On most home and small business networks—where you have a single router and several connected devices—the router's private IP address is the default gateway.How do I hide my IP address?
The two primary ways to hide your IP address are using a proxy server or using a virtual private network (VPN). (There's also Tor, which is great for extreme anonymization, but it's very slow and for most people isn't necessary.) A proxy server is an intermediary server through which your traffic gets routed.What are the types of IP address?
Understanding IP AddressThere are four different types of IP addresses: public, private, static and dynamic.What does 24 mean in IP address?

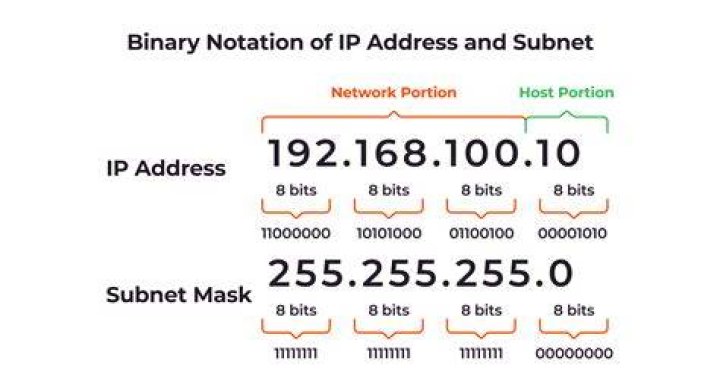

There are two parts to an IP address, the network number and the host number. The subnet mask shows what part is which. /24 means that the first 24 bits of the IP address are part of the Network number (192.168. 0) the last part is part of the host address (1-254).What are the 4 parts of an IP address?
Four parts of IP address:- Every IP address—such as 76.240.
- Those two sections comprise the basic structure of IP addresses: the network ID and the host ID.
- The four IP address parts do NOT have to be divided equally—it's not always the case that two parts make up the network ID and two address parts make up the host ID.
What is Subnet example?
A portion of a network that shares a common address component. On TCP/IP networks, subnets are defined as all devices whose IP addresses have the same prefix. For example, all devices with IP addresses that start with 100.100. 100.How many IP addresses are in a 24?
CIDR, Subnet Masks, and Usable IP Addresses Quick Reference Guide (Cheat Sheet)
| CIDR | Subnet Mask | Usable IPs |
|---|---|---|
| /27 | 255.255.255.224 | 30 |
| /26 | 255.255.255.192 | 62 |
| /25 | 255.255.255.128 | 126 |
| /24 | 255.255.255.0 | 254 |
What is the subnet address?
Subnetmask is a mask used to determine what subnet an IP address belongs to. An IP address has two components, the network address and the host address.
The host address is:
| Subnet Mask | 255.255.240.000 | 11111111.11111111.11110000.00000000 |
|---|---|---|
| Subnet Address | 150.215.016.000 | 10010110.11010111.00010000.00000000 |
What exactly is a subnet?
A subnet mask is a number that defines a range of IP addresses available within a network. A single subnet mask limits the number of valid IPs for a specific network. Multiple subnet masks can organize a single network into smaller networks (called subnetworks or subnets).What is network ID?
The network ID is the network portion of an IP address. For a class A network, the network address is the first byte of the IP address. For a class B network, the network address is the first two bytes of the IP address. The network number is also used by routers to forward packets to the right network.What is a 16 subnet?
For the 16 subnet, the valid host range you can assign on a network is 17-30 because the subnet number is 16 and the broadcast address is 31. For the 32 subnet, the valid host range is 33 to 46 because the subnet number is 32 and the broadcast address is 47.Do phones have IP addresses?
Mobile phones are just like any other device on the internet. They have to have an IP address in order to talk to any other device on the internet. The IP address might be assigned by the cell phone carrier's network, or by the WiFi network the mobile phone is connected to.Can two computers have the same IP address?
Two computers should never have the same IP address if they're on the same network. If they do, results are unpredictable. What happens if two computers have the same IP address? An IP address uniquely identifies every computer on the internet.How do I find my IP address?
Find your PC's IP address- Do one of the following:
- Select an active network connection, and then, in the toolbar, select View status of this connection. (You might need to select the chevron icon to find this command.)
- Select Details. Your PC's IP address appears in the Value column, next to IPv4 Address.
