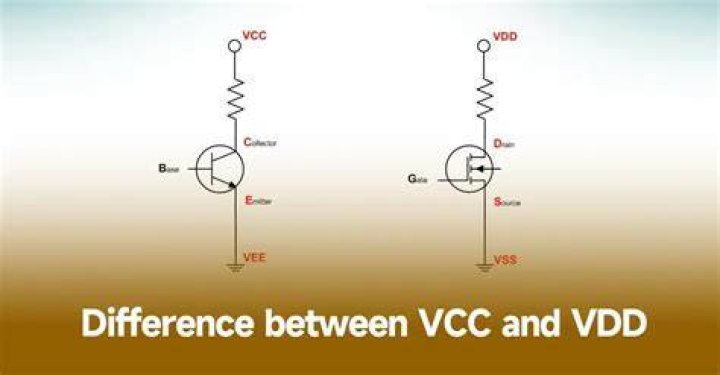

Vdd is usually used for CMOS, NMOS and PMOS devices. It stands for voltage (at) drain. Vcc stands for voltage (at) collector and is primarily used for bipolar devices, although I have seen it used with CMOS devices, probably out of convention. Vee stands for voltage (at) emitter and is usually the most negative..
Beside this, what does VDD stand for?
Voltage Drain Drain
Subsequently, question is, what does VCC mean? Voltage Common Collector
Likewise, what is VSS and VDD in electronics?
The most common difference are. When the only positive power supply is used then VSS means → ground or zero volt while VDD means → Positive voltage (it may be +5V, +15 V etc) But when both positive and negative power supply is used then VSS means negative voltage and VDD means positive voltage.
Is VDD a ground?
VDD is the positive supply voltage; VSS is the “0 V” or “ground” voltage. The D and S stand for “drain” and “source,” referring to two of the three terminals on a field-effect transistor. (Sometimes you also see “VEE,” in which the E stands for “emitter,” which is often a negative voltage with respect to ground.)
Related Question Answers
Why is it called VCC?
The original designation for VCC was: VOLTAGE, common collector.meaning the rail that all the collectors were attached two. Now that we have FET's there can be Vss, Vdd, and Vee: the latter being the common EMITTER source.especially in positive ground systems.Is VDD positive or negative?
Sometimes (but less commonly) the negative supply was called Vee where "e" stands for emitter. When FET logic came about, the same kind of naming was used, but now the positive supply was Vdd (drain) and the negative Vss (source).What VDD main?
VDD is the DC Power supply connected to Drain Terminal of any FET circuit. The positive will be connected to the Drain and negative/GND will be the Source.Is VSS a ground?
ground reference or source power voltage (pin) (VSS; GND) The ground reference voltage pin for NMOS, CMOS, and TTL devices, commonly the reference pin for all other device pins. VSS is normally the system ground and the term VSS is often used interchangeably with the term GND.What is GND?
Definition - What does Ground (GND) mean? Ground, in the context of electronics, is the reference point for all signals or a common path in an electrical circuit where all of the voltages can be measured from. This is also called the common drain since the voltage measurement along it is zero.What does VCC and VEE stand for?
The VCC and VEE are the notations used for the voltages at various common voltage terminals. VCC stands for Voltage at Common Collector that is the positive supply voltage. VEE stands for Voltage at Common Emitter that is the negative supply voltage.What does VSS stand for?
Volume Snapshot Service
Is VCC DC or AC?
VCC of a bipolar junction transistor is the DC voltage that is supplied to the collector of the transistor. VCC is a very important voltage when biasing the transistor because it determines how much the AC signal can be amplified to in the transistor.What is VCC VDD?
Vdd is usually used for CMOS, NMOS and PMOS devices. It stands for voltage (at) drain. Vcc stands for voltage (at) collector and is primarily used for bipolar devices, although I have seen it used with CMOS devices, probably out of convention. Vee stands for voltage (at) emitter and is usually the most negative.What is VCC and VBB?
Vcc = Collector supply voltage, Vee = Emitter supply, Vbb= Base supply voltage, Vdd = Drain supply, Vss = source supply. Whenever the supply to a Transistor (or TTL IC circuit) is connected between the collector and ground it is a standard to notify it as Vcc.What is VDD voltage?
drain power voltage (VDD) The primary power voltage on MOS devices that require a potential that differs from the normal system logic voltage. The term VDD is used interchangeably with VCC on devices that use 5-V supplies.What is VCC and VDD in electronics?
Vcc = Collector supply voltage, Vee = Emitter supply, Vbb= Base supply voltage, Vdd = Drain supply, Vss = source supply. The voltages can be negative or positive depending on the the device and the circuit configuration. This method is a standard specified by Institute Of Electrical And Electronics Engineer (IEEE).What is the full meaning of VCC?
Originally Answered: What is the full form of VCC? If it means about electronics, then it is VOLTAGE collector to collector. (An electronics designation that refers to voltage from a power supply connected to the "collector" terminal of a bipolar transistor.What is the use of VCC?
VCC: VCC stands for "voltage at the common collector." The letter "V" on a circuit stands for the supply voltage. The letters "CC" indicate that the supply voltage is positive or negative.Is GND Plus or minus?
GND is really the reference point. If you are standing at street level, the first floor is one level above ground (so you might call it plus) and the basement is one level below ground (so you might call it minus).What is the use of GND?
GND: GND is the reference point in an electrical circuit from which voltages are measured, a common return path for electric current, or a direct physical connection to the Earth.Is Vcc the same as Vin?
5V is a voltage, not a signal or supply name. Many logic devices have Vcc = 5V, many do not. Vin is as documented in the description of the board the input to the on-board regulator. So you can treat Vcc or Vdd as meaning "logic supply" as opposed to analog or motor supply, for instance.What is VCC on PDB?
VCC= Battery voltage. It does select the camera voltage.. This image has been resized.What is IC pin?
IC stands for "Integrated Circuit". An IC is a tiny circuit made up of resistors, diodes and transistors and placed in a single package. The photo below shows from left to right – an IC that contains logic gates packaged in a 14 pin package, a timer IC in an 8 pin package and a voltage regulator IC in a 3 pin package.
