What is a resource block in LTE?
James Craig news

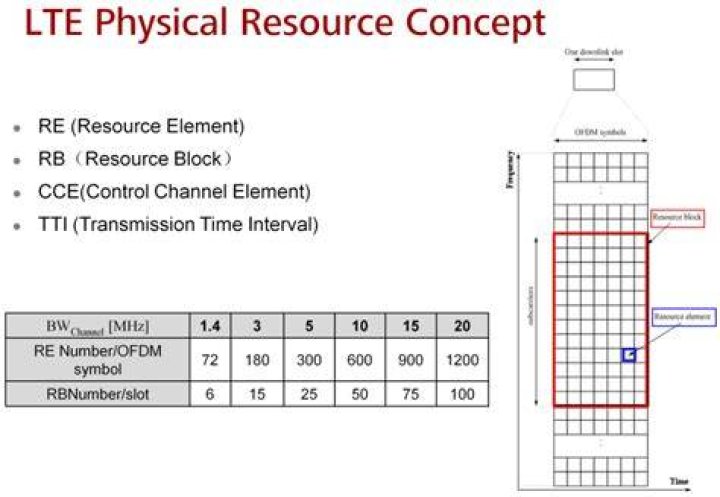

A resource block (RB ) is the smallest unit of resources that can be allocated to a user. The resource block is 180 kHz. wide in frequency and 1 slot long in time. Frequency units can be expressed in number of subcarriers or resource blocks.
.
Subsequently, one may also ask, what is a resource element in LTE?
The smallest modulation structure in LTE is the Resource Element. A Resource Element is one 15 kHz subcarrier by one symbol. Resource Elements aggregate into Resource Blocks. Transmission Bandwidth is the number of active Resource Blocks in a transmission.
Also Know, what is the number of resource block RB in 20mhz BW in LTE? Dear Uri, According to LTE specifications, for 10 MHz bandwidth channels, the number of resource blocks= 50, each resource block is assigned 12 sub carriers for the duration of 0.5 seconds of 6-7 ofdm symbols.
People also ask, what is PRB in LTE?
PRB - Physical Resource Block. A E-UTRA PRB (Physical Resource Block) is defined as consisting of 12 consecutive subcarriers for one slot (0.5 ms). A PRB is the smallest element of resource allocation assigned by the eNB scheduler.
How does LTE TDD work?
While LTE-FDD uses paired frequencies to upload and download data, LTE-TDD uses a single frequency, alternating between uploading and downloading data through time. The ratio between uploads and downloads on a LTE-TDD network can be changed dynamically, depending on whether more data needs to be sent or received.
Related Question Answers
What is reference signal in LTE?
REFERENCE SIGNALSDownlink Reference Signals. To allow for coherent demodulation at the user equipment, reference symbols (or pilot symbols) are inserted in the OFDM time-frequency grid to allow for channel estimation.What is CCE in LTE?
CCE - Control Channel Element. The E-UTRA CCE is a group of resources which can be used to send a PDCCH (Physical Downlink Control Channel). One, two, four or eight CCEs can be grouped to support larger messages. Each CCE consists of 9 REGs (Resource Element Group).What is bandwidth in LTE?
LTE supports deployment on different frequency bandwidths. The current specification outlines the following bandwidth blocks: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, and 20MHz. Frequency bandwidth blocks are essentially the amount of space a network operator dedicates to a network.Why scrambling is used in LTE?
Scrambling the bits make them less prone to interference as the process make the value of bits to be transmitted to be psuedo random. The scrambling code used is a length 31 gold sequence which yields 2^31 puseddo random sequences.What is FFT size in LTE?
The FFT size N=2048 sets the upper limit that can characterise all channel bandwidth from 1.4- 20 MHz (or 72-1200 occuppied subcarriers). Recall that resource blocks only have values on the occupied subcarriers and the rest are padded with zeros in order to fit the FFT size.Why are there 12 subcarriers in LTE?
In the downlink, the subcarriers are split into resource blocks. This enables the system to be able to compartmentalise the data across standard numbers of subcarriers. Resource blocks comprise 12 subcarriers, regardless of the overall LTE signal bandwidth. They also cover one slot in the time frame.What is a resource block what does it consist of?
A resource block (RB ) is the smallest unit of resources that can be allocated to a user. In frequency, resource blocks are either 12 x 15 kHz subcarriers or 24 x 7.5 kHz subcarriers wide The number of subcarriers used per resource block for most channels and signals is 12 subcarriers.What modulation does LTE use?
orthogonal frequency division multiplex (OFDM)
What is resource block in 5g?
38.211-4.4. 4.1 states 'A resource block is defined as 12(N_RB_sc) consecutive subcarriers in the frequency domain'. There is one resource grid for a given antenna port p , subcarrier spacing configuration u, and transmission direction (downlink or uplink).What is a codeword in LTE?
Codeword: codeword represents the user data before it is formatted for transmission. One or two code words, CW0 and CW1, may be used depending on the conditions of the channel and the use case. Precoding: Precoding layer modifies signals before transmission.What is subcarrier LTE?
3) An entity consisting of a orthogonal symbol (0.071428 ms) & one subcarrier (15khz) is known as Resource Element (RE). So a LTE radio frame consists of 10 subframes (i.e. total 1 ms) in time domain & 72 subcarriers (i.e. total 1080 Khz) in freq domain.Why subcarrier spacing is 15 kHz in LTE?
The SFN period equals 1024, thus the SFN repeats itself after 1024 frames or 10.24 s. The 15 kHz LTE subcarrier spacing corresponds to a useful symbol time Tu = 2048 Ts or approximately 66.7 μs. The overall OFDM symbol time is then the sum of the useful symbol time and the cyclic prefix length TCP.What is physical layer in LTE?
The LTE physical layer implements a number of technologies to deliver on requirements for high data rates and spectral efficiency. OFDMA with MIMO allows the downlink to provide as high as 100 Mbps in link throughput while SC-FDMA on the uplink reduces design complexity for the user terminals by reducing PAPR.What is LTE frame structure?
Frame-Structure in LTE. In LTE, DL and UL transmissions are organized into radio frames of 10 ms each. Each frame is divided into ten equally sized subframes. The duration of each subframe is 1 ms. Moreover, each subframe is further divided into two equally sized time slots, that is, each slot is 0.5 ms.How is LTE throughput calculated?
To calculate LTE throughput the following steps should be performed:- Define bandwidth. It can be 1.4, 3, 5, 10, 15 or 20 MHz.
- Choose/define radio link quality.
- The last step is to take a look at Transport Block Size table to determine how many bits can be transmitted per 1 TTI and multiply it by 1000 to get bps.
