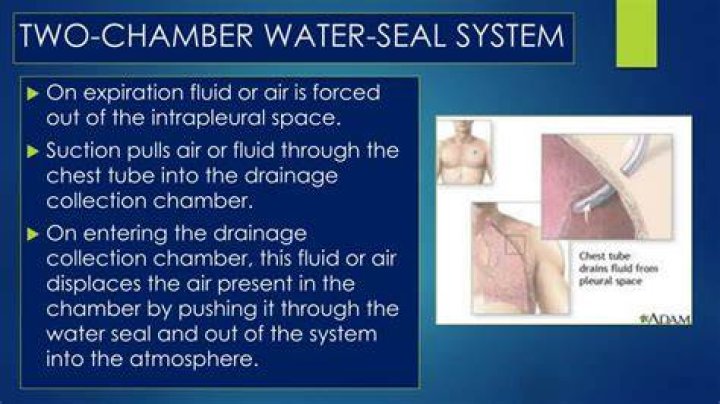

The middle chamber of a traditional chest drainage system is the water seal. The main purpose of the water seal is to allow air to exit from the pleural space on exhalation and prevent air from entering the pleural cavity or mediastinum on inhalation..
Also to know is, how do you water seal a chest tube?
DO
- Keep the system closed and below chest level. Make sure all connections are taped and the chest tube is secured to the chest wall.
- Ensure that the suction control chamber is filled with sterile water to the 20-cm level or as prescribed.
Similarly, is bubbling in the water seal chamber normal? Air bubbling through the water seal chamber intermittently is normal when the patient coughs or exhales, but if there is continuous air bubbling in the chamber, it can indicate a leak that should be evaluated.
Similarly, how do you manage a chest tube?
- See Aseptic Technique Policy and Procedure.
- Perform hand hygiene.
- Use personal protective equipment to protect from possible body fluid exposure.
- Place newly prepared drainage system in a position adjacent to the old system as set up as per chest drain set up.
- Clamp all tubing.
- Cut the tie wraps with the Pliers.
What is water seal drainage?
Definition Water seal drainage system is a closed chest drainage system used to allow air and fluid to escape from the plural space with each exhalation and to prevent their return flow with each inhalation watersealdrainage. 4.
Related Question Answers
What is the difference between suction and water seal?
If a chest tube is placed, gravity water seal drainage is used, and suction is only added if the lung does not re-expand as quickly as expected. The tube allows air and/or fluid collection to drain out of the body resulting in re-expansion of the patient's lung.What is the normal amount of drainage for a chest tube?
Compared to a daily volume drainage of 150 ml, removal of chest tube when there is 200 ml/day is safe and will even result in a shorter hospital stay.How long does a chest tube stay in?
Your doctors will discuss with you how long the drain needs to stay in. This may be from between one day to one to two weeks, depending on how well you are responding to treatment. You may need to have several chest X-rays during this time to see how much fluid or air remains.What does Tidaling mean?
Tidaling is the rise and fall of fluid in the water seal tube chamber, which is a direct reflection of the degree of lung re-expansion. Tidaling decreases as the lung re-expands. In order to observe tidaling when suction is used, suction may be temporarily disconnected.When should a chest tube be removed?
Chest tubes should be removed when the lung is fully reinflated and there is less than 200-300 mL* non-infected fluid output in 24 hours. Then, briskly remove the chest tube and cover wound immediately with xeroform gauze covered by sterile 4x4 pressure dressings.What happens if chest tube comes out?
A chest tube falling out is an emergency. Immediately apply pressure to chest tube insertion site and apply sterile gauze or place a sterile Jelonet gauze and dry dressing over insertion site and ensure tight seal. Apply dressing when patient exhales. If patient goes into respiratory distress, call a code.What are safety considerations when caring for a patient with a chest tube?
Frequent position changes, coughing, and deep breathing help reexpand the lung and promote fluid drainage. Avoid aggressive chest-tube manipulation, including stripping or milking, because this can generate extreme negative pressures in the chest tube and does little to maintain chest-tube patency.Does a chest tube hurt?
Pain during placement: Chest tube insertion is usually very painful. Your doctor will help manage your pain by injecting an anesthetic through an IV or directly into the chest tube site. Bleeding: A very small amount of bleeding can occur if a blood vessel is damaged when the chest tube is inserted.What percentage of pneumothorax requires a chest tube?
Large (> 25% or apex to cupula distance > 3 cm) pneumothorax requires chest tube placement. Hemodynamically unstable patient. Recurrent or persistent pneumothorax. Tension pneumothorax requires needle decompression followed by an ipsilateral chest tube.How do you assess a chest tube?
Assess the insertion site for subcutaneous emphysema and tube migration. Chest Tube Care basics: Keep all tubing free of kinks and occlusions; for instance, check for tubing beneath the patient or pinched between bed rails. Take steps to prevent fluid-filled dependent loops, which can impede drainage.How can you tell if a chest tube has an air leak?
Start by examining the air-leak detection chamber in the water seal of the drainage device. An air leak presents as small air bubbles; the amount of bubbling indicates the degree of the leak. If you notice bubbling, determine location of the leak.Where do you place a chest tube for a Hemothorax?
For a hemothorax, the tube is usually inserted at the level of the nipple and directed posteriorly and laterally. Elevate the head of the bed 30 to 60 degrees, and place (and restrain) the arm on the affected side over the patient's head.Why would you clamp a chest tube?
Avoid aggressive chest-tube manipulation, including stripping or milking, because this can generate extreme negative pressures in the tube and does little to maintain chest-tube patency. As a rule, avoid clamping a chest tube. Clamping prevents the escape of air or fluid, increasing the risk of tension pneumothorax.What is the purpose of suction on a chest tube?
It is used to remove air in the case of pneumothorax or fluid such as in the case of pleural effusion, blood, chyle, or pus when empyema occurs from the intrathoracic space. It is also known as a Bülau drain or an intercostal catheter.When can you clamp a chest tube?
* Don't clamp a chest tube, except momentarily when replacing the CDU, assessing for an air leak, or assessing the patient's tolerance of chest tube removal, and during chest tube removal.Which of the following tasks associated with a chest tube is the responsibility of the nurse?
Which of the following tasks associated with a chest tube is the responsibility of the nurse? Setting up equipment, positioning the patient, and monitoring patient status. A patient is being prepared for open-heart surgery.How do you connect suction to chest tube?
First, squirt sterile saline or water into the suction port until the water seal chamber is filled to the 2 cm line. 2. Connect your chest tube to the drainage system's “patient catheter.” Note that you need a stepped connector to firmly connect the two.Should the suction control chamber bubble?
Bubbling in the Suction Control Chamber is NormalNowadays, the suction pressure is controlled by the water level in the suction control chamber (in “wet” suction models). If the suction pressure is too low, no bubbling will occur.What happens when there's an air leak in a chest tube?
If this connection persists, there will be flow of air from the lung parenchyma to the pleural space and worsening of the pneumothorax. Once a chest tube is inserted, air bubbling into the chest drainage system indicates an air leak. If an air leak lasts > 5 to 7 days, it is termed a persistent air leak (PAL).
