In which OSI layer does the UDP protocol operate?
Andrew Mccoy updates
TCP and UDP are transport layer protocols and as such exist at layer 4 of the OSI model above the Network Layer and below the Session Layer.
.
In this regard, what layer does UDP operate at?
transport layer
on which OSI layer do TCP and UDP function? Explanation: The Transport layer does exactly what its name implies: It provides the mechanisms for carrying data across a network. TCP and UDP are Layer 4 protocols.
Moreover, what is UDP in OSI model?
User Datagram Protocol (UDP) UDP is also a transport-layer protocol and is an alternative to TCP. It provides an unreliable datagram connection between applications. Data is transmitted link by link; there is no end-to-end connection.
What are the protocols used in OSI layers?
| OSI Layer | Name | Common Protocols |
|---|---|---|
| 7 | Application | HTTP | FTP | SMTP | DNS | Telnet |
| 6 | Presentation | |
| 5 | Session | |
| 4 | Transport | TCP | SPX |
Related Question Answers
What layer is DNS?
In OSI stack terms, DNS runs in parallel to HTTP in the Application Layer (layer 7). DNS is in effect an application that is invoked to help out the HTTP application, and therefore does not sit "below" HTTP in the OSI stack. DNS itself also makes use of UDP and more rarely TCP, both of which in turn use IP.What layer is HTTP?
application layer
Where is UDP used?
Unlike TCP, data usually is transferred immediately, in the first UDP packet. UDP operates at Layer 4. UDP is commonly used for applications that are “lossy” (can handle some packet loss), such as streaming audio and video. It is also used for query-response applications, such as DNS queries.Is IP a TCP or UDP?
User Datagram Protocol (UDP) UDP is also a transport-layer protocol and is an alternative to TCP. In terms of the OSI model, IP is a network-layer protocol. It provides a datagram service between applications, supporting both TCP and UDP.What is UDP protocol used for?
UDP (User Datagram Protocol) is an alternative communications protocol to Transmission Control Protocol (TCP) used primarily for establishing low-latency and loss-tolerating connections between applications on the internet.How do I use UDP?
Typically, use UDP in applications where speed is more critical than reliability. For example, it may be better to use UDP in an application sending data from a fast acquisition where it is acceptable to lose some data points. You can also use UDP to broadcast to any machine(s) listening to the server.Is UDP part of IP?
Both TCP and UDP are protocols used for sending bits of data — known as packets — over the Internet. They both build on top of the Internet protocol. The widely used term “TCP/IP” refers to TCP over IP. UDP over IP could just as well be referred to as “UDP/IP”, although this is not a common term.How does UDP protocol work?
UDP uses the Internet Protocol to get a datagram (data unit) from one computer to another. UDP works by encapsulating data in a UDP packet and adding its own header information to the packet. This data consists of the source and destination ports to communicate on, the packet length and a checksum.What is the full form UDP?
UDP (User Datagram Protocol) is an alternative communications protocol to Transmission Control Protocol (TCP) used primarily for establishing low-latency and loss-tolerating connections between applications on the internet.What is TCP and UDP?
They are TCP or Transmission Control Protocol and UDP or User Datagram Protocol. TCP is connection oriented – once a connection is established, data can be sent bidirectional. UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.What layer is WIFI?
Data Link layers
What is a characteristic of the UDP protocol?
The User Datagram Protocol (UDP) is defined in RFC 768. It provides an unreliable connectionless transport service on top of the unreliable network layer connectionless service. The main characteristics of the UDP service are : the UDP service cannot deliver SDUs that are larger than 65467 bytes [1]Where is UDP on the OSI model?
TCP and UDP are transport layer protocols and as such exist at layer 4 of the OSI model above the Network Layer and below the Session Layer.Is UDP full duplex?
2 Answers. UDP, in the right circumstances, can be considered fully duplex, but by itself, it is not, whereas TCP, on the other hand, is always fully duplex. UDP is a fire-and-forget, best-effort protocol, but the upper layers can use it in a fully duplex fashion.What layer is SMTP?
application layer
How UDP connection is established?
Protocol HeaderA computer may send UDP packets without first establishing a connection to the recipient. UDP packets from a server carry the server SAP in this field) Destination Port (UDP packets from a client use this as a service access point (SAP) to indicate the service required from the remote server.What OSI layer is TCP IP?
OSI follows a vertical approach. TCP/IP uses both session and presentation layer in the application layer itself. OSI uses different session and presentation layers. TCP/IP developed protocols then model.What are the 7 layers of networking?

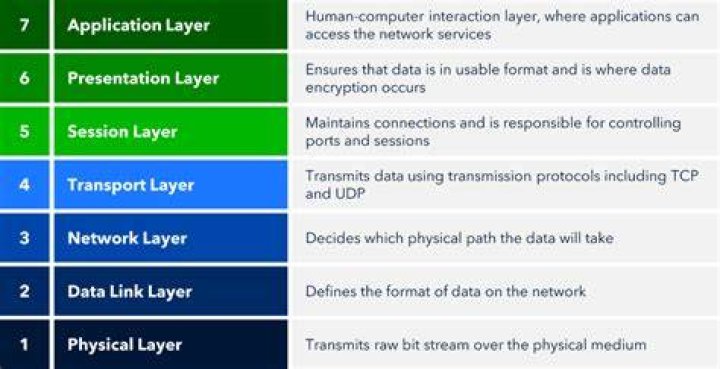

The Open System Interconnection (OSI) model defines a networking framework to implement protocols in seven layers.
The 7 Layers of the OSI
- Layer 7 - Application.
- Layer 6 - Presentation.
- Layer 5 - Session.
- Layer 4 - Transport.
- Layer 3 - Network.
- Layer 2 - Data Link.
- Layer 1 - Physical.
